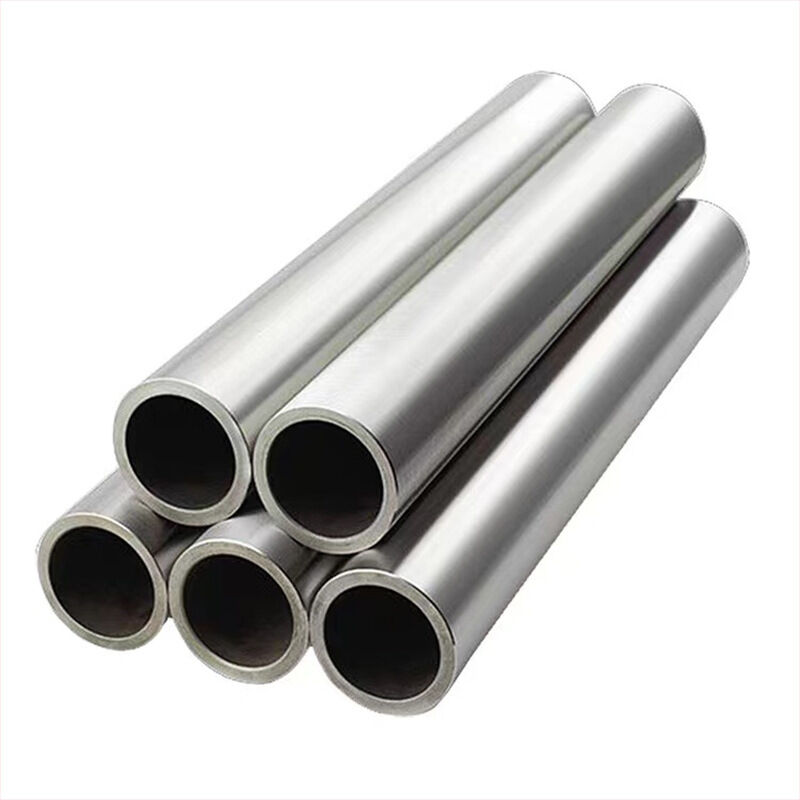

ASME SB861 Certified Grade 1 Titanium U Tube with 19.05mm OD × 1.0mm WT for Heat Exchanger Applications

Name: ASME SB861 Certified Grade 1 Titanium U Tube with 19.05mm OD × 1.0mm WT for Heat Exchanger Applications
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HB-TI
Price: 22.00 USD
Availability: InStock

Rincian produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: Hongbao

Sertifikasi: DNV,PED,ISO,TUV,LR

Nomor model: HB-TI

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 200kg

Harga: negotiable

Kemasan rincian: pengepakan kotak kayu lapis yang layak laut.

Waktu pengiriman: dalam waktu 50 hari

Syarat-syarat pembayaran: D/P,L/C,D/A,L/C,Western Union

Menyediakan kemampuan: 800MT/TAHUN

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:

Bahan::	Kelas 1, Kelas 2, Kelas 3, Kelas 7, Kelas 9, Kelas 12	Sertifikat::	DNV,PED,ISO,TUV,LR
Ketebalan::	0,4-10mm	OD::	10-114 mm
Panjang::	100-15000mm	Membentuk::	Bulat

Bahan::	Kelas 1, Kelas 2, Kelas 3, Kelas 7, Kelas 9, Kelas 12
Sertifikat::	DNV,PED,ISO,TUV,LR
Ketebalan::	0,4-10mm
OD::	10-114 mm
Panjang::	100-15000mm
Membentuk::	Bulat

ASME SB861 Certified Grade 1 Titanium U Tube with 19.05mm OD × 1.0mm WT for Heat Exchanger Applications

ASME SB861 19.05×1mm Grade 1 Seamless Titanium U Tube for Heat Exchanger Applications

Product Overview

19.05 ×1mm ASME SB861 Grade 1 Titanium Seamless U-Tube

Engineered for critical heat transfer applications, this U-tube combines the unmatched corrosion resistance of commercially pure titanium with precision manufacturing.

Key Features

Premium Material: ASTM/ASME SB861 Grade 1 Titanium offers the best ductility and superior corrosion resistance in oxidizing environments (ideal for seawater and chlorides).
Precision Dimensions: Strict 19.05mm OD × 1.0mm WT tolerances ensure perfect fit and optimal flow dynamics in shell-and-tube exchangers.
U-Bend Integrity: Mandrel-bent with controlled radii to prevent wall thinning. Stress relieved to prevent stress corrosion cracking.
Certified Quality: Compliant with ASME Boiler and Pressure Vessel Code requirements, ensuring safety for high-pressure and high-temperature systems.

Applications

Coastal power plant condensers, marine HVAC systems, chemical processing coolers, and pharmaceutical heat exchangers.

Product Specifications

Standard	ASTM B337, ASTM B338, ASTM B861, ASTM B862
Grade	Gr1, Gr2, Gr7, Gr9, Gr12
Dimension	ODWTL (10-114)(0.4-10)(100-15000)mm
Manufacturing Method	Cold rolled
Condition	Annealed(M)
Features	Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength
Inspection	Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis

Basic Tension Data

Grade	Tensile Strength, min	Yield Strength 0.2% offset Yield	Elongation in 2in or 50mm Min%
1	35 Ksi / 240 Mpa	20-45 Ksi / 138-310 Mpa	24
2	50 Ksi / 345 Mpa	40-65 Ksi / 275-450 Mpa	20
7	50 Ksi / 345 Mpa	40-65 Ksi / 275-450 Mpa	20
9A	125 Ksi / 860 Mpa	105 Ksi / 725 Mpa	10
9B	90 Ksi / 620 Mpa	70 Ksi / 483 Mpa	15
12	70 Ksi / 483 Mpa	50 Ksi / 345 Mpa	18

A. Properties for cold-worked and stress-relieved B. Annealed. C. Solution treated

Chemical Composition of Material

Grade 1 - Unalloyed titanium
Grade 2 - Unalloyed titanium
Grade 7 - Unalloyed titanium plus 0.12 to 0.25% palladium
Grade 9 - Titanium alloy (3% aluminum, 2.35% vanadium)
Grade 12 - Titanium alloy (0.3% molybdenum, 0.8% nickel)

Size Tolerance

Standard	OD Tolerance	WT Tolerance
ASTM B338	<25.4mm, ±0.102mm 24.4-38.1mm ±0.127mm 38.1-50.8mm ±0.152mm 50.8-63.5mm ±0.178mm 60.3-88.9mm ±0.254mm	±10%
ASTM B861	3.2-3.8mm -0.794/+0.397mm 38-102mm ±0.794mm 102-203mm 0.794/+1.588mm	±12.5%

Available in seamless and welded options. Custom sizes upon request.
